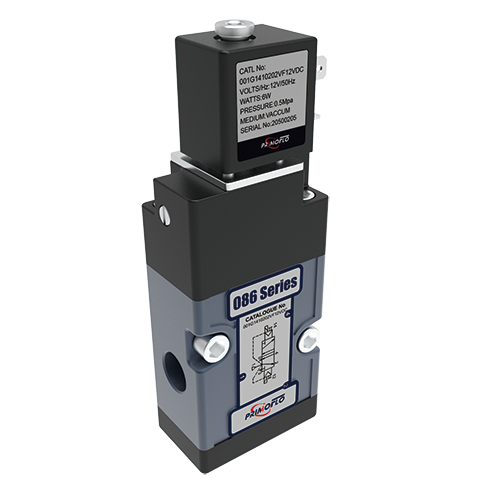

086-XX-1086 Series TYPE I
Technical SpecificationsCAD modelMORE >Pipe Size 1/4", 1/2" Operation Pilot operated Type 3/2 Single Coil O.P.D 29 to 145 psi (2.0 to 10 bar) Media Temperature -40°F to 149°F (-40°C to 65°C) Solenoid Enclosures Watertight & Dust Protection: IP65
Fly cable of the coil is available
NASS Ex Coil

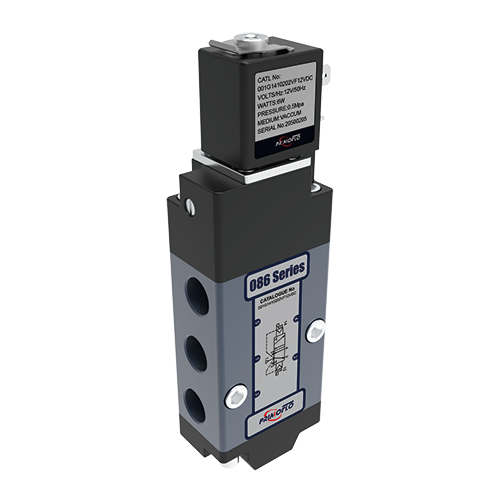

086-XX-2086 Series TYPE I
Technical SpecificationsCAD modelMORE >Pipe Size 1/4", 1/2" Operation Pilot operated Type 5/2 Single Coil O.P.D 29 to 145 psi (2.0 to 10 bar) Media Temperature -40°F to 149°F (-40°C to 65°C) Solenoid Enclosures Watertight & Dust Protection: IP65
Fly cable of the coil is available
NASS Ex Coil

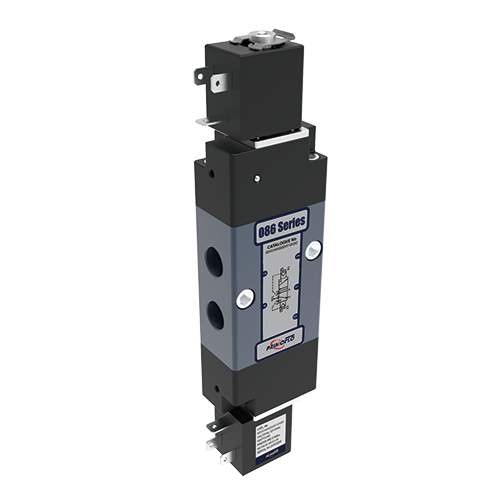

086-XX-3086 Series TYPE I
Technical SpecificationsCAD modelMORE >Pipe Size 1/4", 1/2" Operation Pilot operated Type 5/2 Double Coil O.P.D 29 to 145 psi (2.0 to 10 bar) Media Temperature -40°F to 149°F (-40°C to 65°C) Solenoid Enclosures Watertight & Dust Protection: IP65
Fly cable of the coil is available
NASS Ex Coil
086-XX-4086 Series TYPE I
Technical SpecificationsCAD modelMORE >Pipe Size 1/4", 1/2" Operation Pilot operated Type 5/3 Middle Closed O.P.D 29 to 145 psi (2.0 to 10 bar) Media Temperature -40°F to 149°F (-40°C to 65°C) Solenoid Enclosures Watertight & Dust Protection: IP65
Fly cable of the coil is available
NASS Ex Coil-
086-XX-5086 Series TYPE I
Technical SpecificationsCAD modelMORE >Pipe Size 1/4", 1/2" Operation Pilot operated Type 5/3 Middle Exhausted O.P.D 29 to 145 psi (2.0 to 10 bar) Media Temperature -40°F to 149°F (-40°C to 65°C) Solenoid Enclosures Watertight & Dust Protection: IP65
Fly cable of the coil is available
NASS Ex Coil
